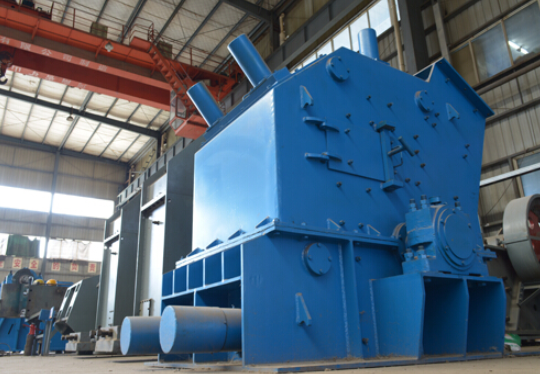

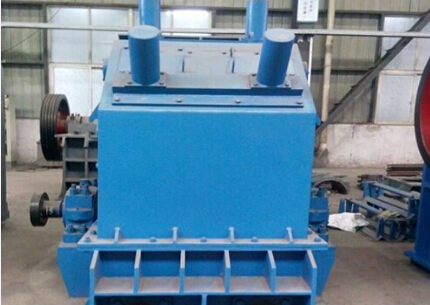

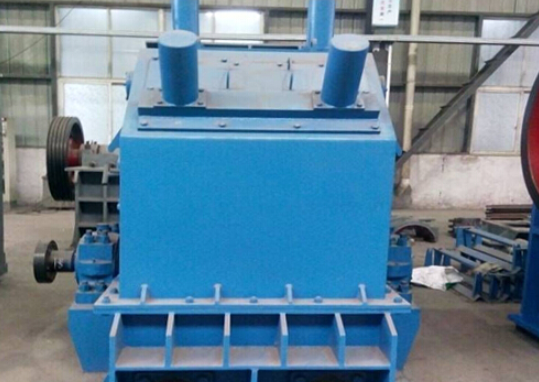

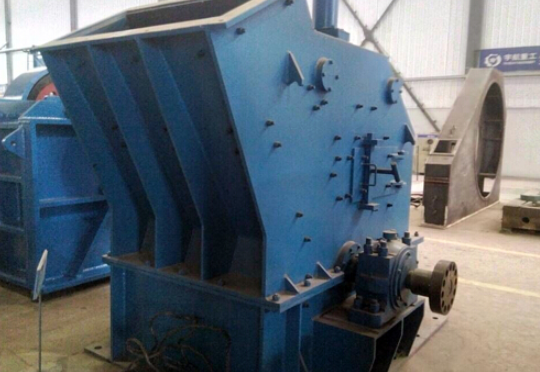

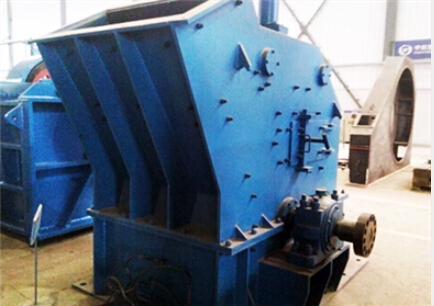

impact crusher

  Application: power plant, mine, metallurgy, building materials, chemistry and coal mine.

  Suitable material: medium hardness material tensile strength less than 140MPa, such as limestone, coal, alumina crust

  Production capacity: Type PFX (15-100t/h), Type PCF (15-200t/h)

  Equipment type: PFX and PCF

  Feeding and discharging sizes: PFX—Max feeding size is 150mm, discharging ≤7-10mm

  PCF-- Max feeding size is 150~350mm, discharging ≤7-30mm

立即订购

产品特点

  Features:

  1. High breaking ratio and efficiency, easy maintenance. It is the ideal equipment for high-level road and hydropower construction.

  2. Combine the advantage of the impact crusher and hammer crusher with low consumption cost and easy operation.

  3. The discharging size can be adjusted, which makes the crushing procedure easier.

工作原理

  This crusher is hammer type impact crusher with single rotor. When materials are fed into crushing chamber, the materials are immediately impacted and crushed by high speed rotating hammer, and then be thrown to the impact liner with the kinetic energy. After repeated impact between materials and liner or material, the crushing efficiency and ratio will highly increase. What’s more, the produced granularity can be controlled effectively due to the grinding effect between evenness liner and hammer.

技术参数

Product

Specification model(mm)

Throughput

Motor power(kw)

Equipment weightt

反击式破碎机

PFX-1007

φ1000×700

15-30t/h

37~45

8.6

PFX-1010

φ1000×1000

25-40t/h

55~75

11

PFX-1210

φ1200×1050

40-60t/h

90~110

15.4

PFX-1212

φ1200×1250

55-80t/h

132~160

18.6

PFX-1214

φ1200×1400

70-100t/h

185~220

22.3

PCF1007

φ1000×700

15-30t/h

55

8.9

PCF1010

φ1000×1050

25-55t/h

75~90

11.5

PCF1012

φ1000×1200

50-75t/h

90~110

13.6

PCF1016

φ1000×1600

70-90t/h

132

14.8

PCF1212

φ1200×1200

85-130t/h

160

17.1

PCF1416

φ1400×1600

120-200t/h

220~280

24.5
