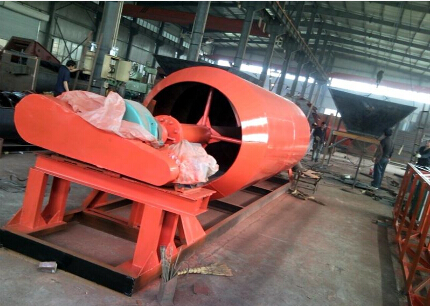

drum washing machine
The drum washing machine being called also drum type machine or drum type ore machine is mainly used for the desliming of artificial sand stone
which size is less than 80mm. It has advantages of acceptable big feeding size, only 0.5% of mud content in aggregates after washed, as well as
less than 2% of water content.
1、 High integrity, safety and convenient
In addition of belt conveyer in products stack, all the system is concentrated in a general frame, which will ensure not only the entirety of
equipment but also leave a proper maintenance and inspection space. The high integrity facilitates the storage and handling of materials in site
with safety and convenience.
The washing system, which is core part of the machine adopts the mixing principles of mixer. The raw materials driven by impeller in the drum,
roll over, push and inter-grind to accomplish the washing operation.
3、Great capacity, low noise and convenient maintenance
The drum washing machine is featured in great capacity, low noise in operation and easy maintenance compared with spiral washing machine.
4、 uniform product after washing
Not more than 0.4% of mud content after washing is superior over the relevant standards. Due to cleanliness of gravel obtained after
the washing and the concrete strength is thus uniform and steady, the approximate 5% of cement saving can be ensured with constant strength.
5、 wide application, energy conservation & environmental protection
Adopting the latest advanced water circulation precipitation theory, the special design of circulating water
sedimentation tank has been made as per conditions of every construction site, that can not only solve the problem of water sources but also
prevent from the pollution. Compared with spiral washing machine and traditional drum washing machine, this machine has advantages of big
capacity, low noise and easy maintenance. It’s used in desliming, screening and ore separation in various industries such as construction site,
sand factory, concrete precast plant as well as hydro-electricity building site.
Supported by the four (4) rollers, the washing machine operates with low speed driven by the motor. The aggregates
contenting mud and ore powder are fed into the drum, they are constantly threw up and threw down and impact with rubber liner installed in the
drum, and washed and rewashed by flowing and reverse water flow, finally the cleaned aggregates are discharged through the trommal after
dehydration, and the waste water with mud are flowed out by perforated plates in feeding end.
