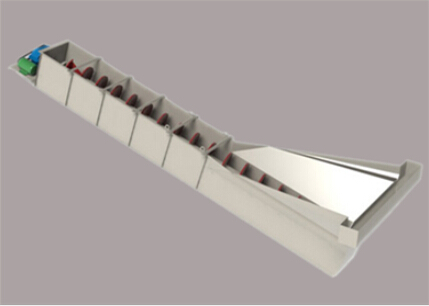

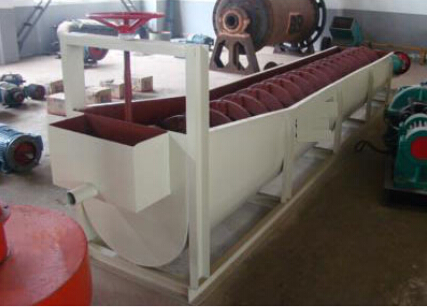

sand washing machine

      Description:

  The sand washing equipment, specially developed and designed by Y.H Heavy is the latest generation of sand washer used for sand grading and dehydration. Its unique working principle, novel sealing structure, fully enclosed oil bath driving system and adjustable overflow weir plate will ensure the good performance of the machine, which is featured by efficiency, durability, ideal washing, good dehydration and steady fine products. It’s well received by European and American customers. Now it’s successfully used in many industries such as construction site, sand production plant, hydro-power station, concrete dam site as well as casting, glass work and oil well exploitation and so on.

  Feeding size:≤10mm

  Capacity:100-350t/h

  Applicable material: Suitable materials

  Application: It’s used widely for washing, grading and impurity removal in industries of road, hydro- electricity and construction. It can be also applied for fine and coarse materials washing operations, especially suitable for sand washing of road construction.

consultation Immediate order

PRODUCT FEATURES

      Characteristics:

  1、 Optimization on screw speed to guarantee the washing accuracy

   Designed by Y.H Heavy, the leading plate and adjustable long overflow weir plate combined with optimal spiral speed, will ensure the materials washing and grading accuracy.

  2、 Performed sealing, low cost of maintenance

   The novel sealing structure, fully enclosed oil bath driving system and adjustable overflow weir plate are adopted to ensure the efficient, durable, clean and dehydration effects as well as steady fine product size as so to greatly decrease the cost and workload of maintenance.

  3、 Performed wear resistance, efficient continuous running



WORKING PRINCIPLE

     Working principles:

  During operation of the sand washing machine, the materials are fed uniformly by feed hopper, and a specified amount of water is injected into the main trough, the transmission part drives the screw shaft to rotate at rated speed, forcing the materials to roll over in the trough and move forward to the discharge opening. The fine graded materials and impurities are discharged with water to overflow weir, and the coarse ones get out from the discharge opening so as to accomplish the washing, grading, impurity removal and dehydration of materials.

TEHNICAL PARAMETERS



Type

Screw diameter(mm)

Nos. of screw(pcs)

Feeding size (mm)

Capacity (t/h)

Water consumption(m3/h)

Power (kw)

Outline dimension (mm)

Weight (t)

XL-762

762

1

<10

75

9-63

11

9070×2650×1530

5.2

2XL-762

762

2

<10

140

20-150

2×11

9070×3250×1530

7.45

XL-914

914

1

<10

100

10-80

15

9070×2650×1638

6.35

2XL-914

914

2

<10

200

60-300

2×15

9070×3510×1638

11.3

XL-1118

1118

1

<10

175

13-168

22

9070×2830×1900

12.7

2XL-1118

1118

2

<10

350

60-600

2×22

9070×3890×1900

16.5

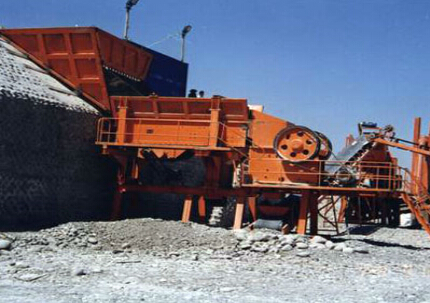

APPLICATION CASE

OTHER PRODUCTS


  • drum washing machine

  • bucket-wheel sand washer

  • powder classifier

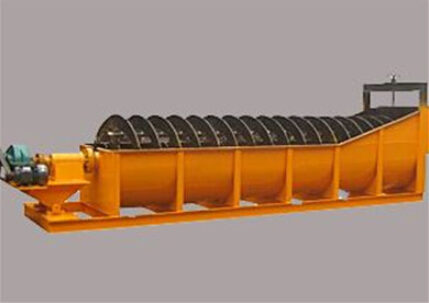

  • spiral classifier
